Fanuc 10, 11, 12 and 15 Series
Machine Parameters
To make any changes to the machine parameters you must enable Parameter Write Enable
(PWE). Always backup parameters before making any changes.
- Select MDI mode.
- Press the SERVICE soft key.
- Locate parameter 8000.
- Change Bit #0 from 0 to a 1. The control will enter an alarm state, this is normal.
Change back to 0 when finished and press the Reset button to clear alarm.
Suggested Parameters settings:
|
Parameter Number
|
Description
|
Value
|
|
0 - Bit #0(TVC)
|
TV check performed or not
0=No, 1=Yes
|
0
|
|
0 - Bit #1(CTV)
|
TV check performed or not during control out
0=No, 1=Yes
|
0
|
|
0 - Bit #2(ISP)
|
ISO code is with parity bit or not
0=No, 1=Yes
|
0
|
|
0 - Bit #3(NCR)
|
Method of punching by EOB or ISO
|
0
|
|
0 - Bit #4(EIA)
|
Punch code is ISO or EIA
|
0
|
|
20
|
Input Channel for foreground
|
1
|
|
21
|
Output Channel for foreground
|
1
|
|
22
|
Input Channel for background
|
1
|
|
23
|
Output Channel for background
|
1
|
|
5001
|
I/O device connected to Reader/Puncher interface
|
1
|
|
5110
|
Reader/Puncher device number corresponding to device No 1
|
3
|
|
5111
|
Stop Bits
|
2
|
|
5112
|
Baud Rate. See Table
|
10
|

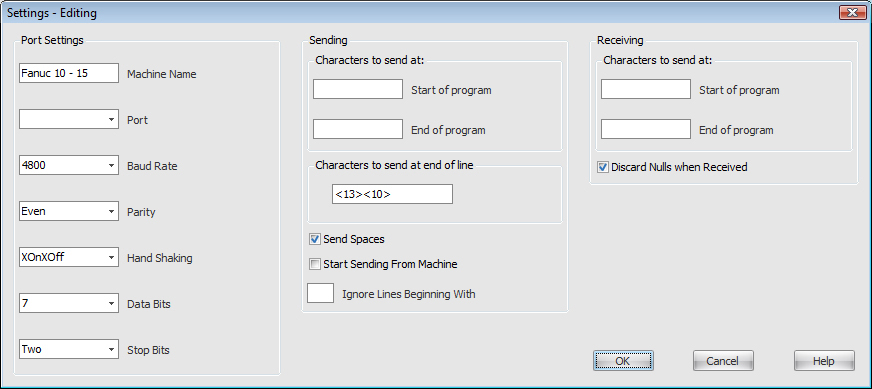

SharpEdit Settings:
